Drop-forged, case-hardened, high-strength alloy conveyor chain at competitive prices
Chains, sprockets and trailers usually available from stock in metric sizes 102, 125, 142, 150, 160, 175, 200, 216, 250, 260
The drop forged chains supplied by LUAN DUNG are made of heat treated high grade alloy steel. These links can be equipped with plastic or steel scrapers.
The following table shows various types of drop forged chains, together with the respective breaking loads and core/surface hardness.

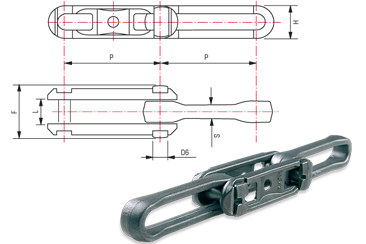

Drop Forged Chains for Feed and Washing Tables
This chain of robust and simple construction makes it most suitable in cane in feed conveyors
The chain can be turned to provide new sliding surfaces and pin rotated 180 degrees allowing unworn diameter to contact with inner link, thus increasing the effective life of the chain. Normally components are from heat treated high alloy steel and sold under the MAXITUFF brand.

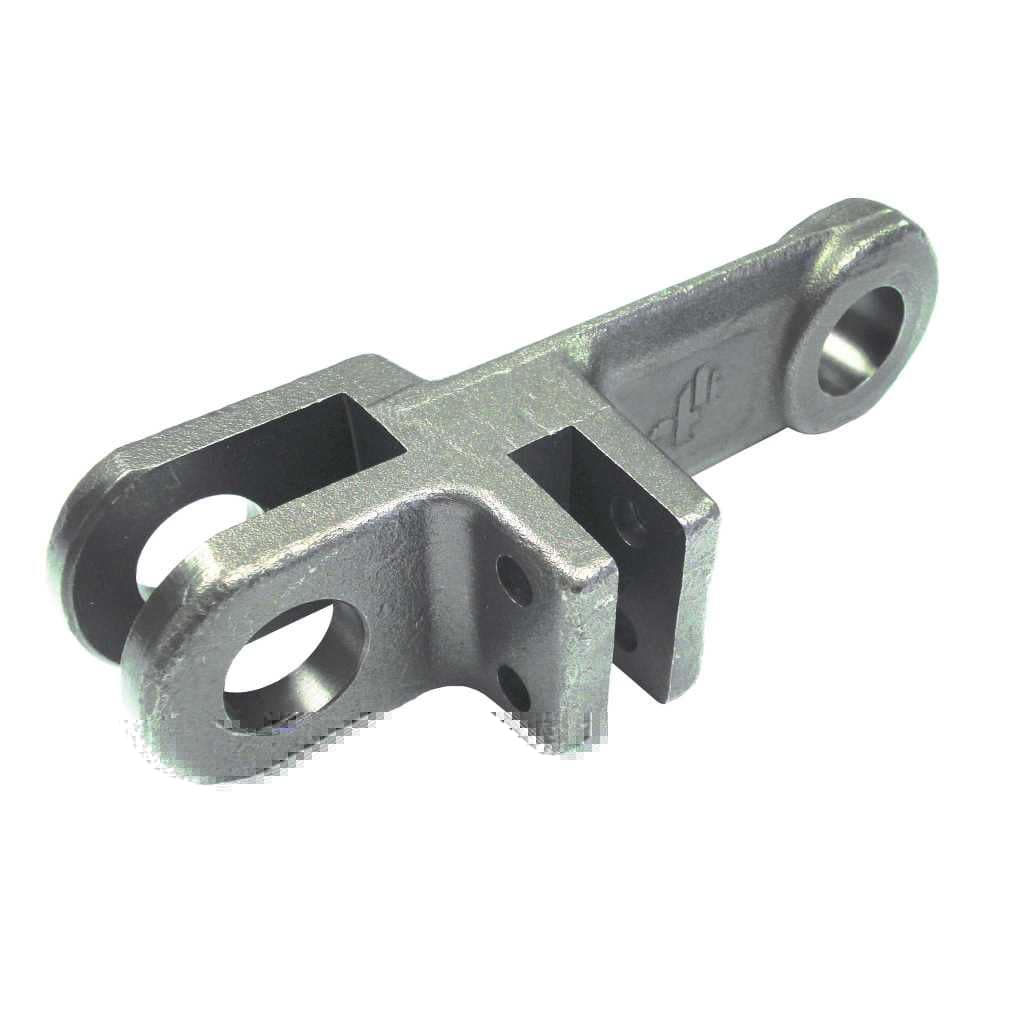

Forged Chain Link
| MODEL | Min. Breaking Load | Case Depth | Weight/Link | P | H | T | W | M | D | F | E | B | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kN) | (lb) | (kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 4B142DNA | 300 | 67500 | 0.7 mm | 1.37 kg | 142 | 50 | 12 | 42 | 18.7 | 25 | 67 | 13 | 8.5 |
| 4B142DHA | 450 | 101000 | 0.7 mm | 2.00 kg | 142 | 50 | 16 | 62 | 28 | 25 | 87 | 13 | 8.5 |
| 4B175DNA | 520 | 117500 | 1.0 mm | 3.17 kg | 175 | 60 | 16 | 72 | 22 | 30 | 96 | 17 | 10.5 |
